德国普罗名特计量泵

CONCEPT C系列电磁隔膜计量泵

2016-03-11 09:44:43

天津市友鑫科技有限公司-德国普罗名特计量泵特约代理商
天津普罗名特|北京普罗名特|河北普罗名特|石家庄普罗名特|保定普罗名特|唐山普罗名特|衡水普罗名特|廊坊普罗名特|

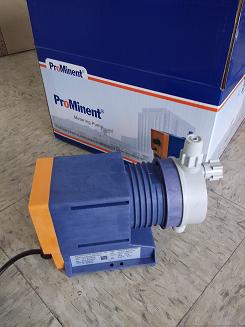

CONCEPT C 系列精密计量泵-德国普罗名特计量泵


    普罗名特CONCEPT C系列计量泵是由微处理器控制、短冲程、电磁驱动的隔膜型计量泵。CONCEPT C系列计量泵以其精巧的结构、可靠的性能、优越的性价比多年来受到广大用户的一致好评。由于泵头材质具有良好的耐化学腐蚀性能,因而可以对各种工艺过程中 几乎所有化学液体进行精确计量。

特点:

    ◇ 电磁驱动正排量计量泵、结构紧凑、可靠耐用。
    ◇ 多种备选型号,计量范围从0.7~23 l/h,压力为1.5~16 bar。
    ◇ 多种具有良好耐化学腐蚀性能的泵头材质可供选择。

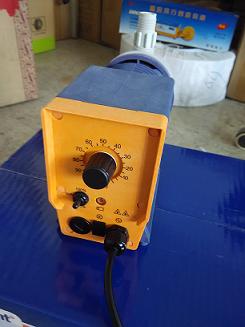

    ◇ 冲程长度可籍手动旋钮从0~100%连续调节(zui佳调节范围在30~100%)
    ◇ 重复计量精度优于±2%
    ◇ 冲程频率控制形式多样:
          手动调节实现三种固定计量频率:100%、50%、25%
          外部无源触点信号控制和100%、50%两种固定频率可选
          外部模拟4-20mA电流信号控制和100%、50%两种固定频率可选
    ◇ 液位保护自锁当系统接有药箱液位计时,根据液位报警信号,计量泵可以自动停
                    止工作,避免空转。

工作条件:
    ◇ 环境温度:-10℃~+45℃
    ◇ 电源:220V,50Hz
    ◇ 功率:12W/16W/24W
    ◇ 保护等级:IP65
    ◇ 绝缘等级:F

应用:可对水处理、石化、卫生、饮料等行业中几乎所有常见的化学液体进行计量,例如碱液、酸液、含氯的溶液、消毒剂、凝结剂、冷却塔用化学药剂等。


性能参数

型号
压力
流量
冲程流量
冲程频率
连接尺寸
吸入端入口
压力
重量
CONcbarl/hml/strokestrokes/min.mmbarkg
1600160.720.2606×482.36
1601161.140.21906×482.36
1602161.440.21206×482.36
1603122.10.21806×482.36
1001102.280.42908×532.4
1002103.120.431208×532.4
1003104.680.431808×532.4
070373.600.66908×532.4
080384.800.661208×532.4
080687.200.661808×532.4
030636.301.166908×51.52.4
030838.701.2081208×51.52.4
0313313.81.271808×51.52.4
02121.512.02.229012×90.82.5
02151.516.52.2912012×90.82.5
02231.524.02.2218012×90.82.5


过流部分材质

  泵头 吸/排液阀体 密封件 阀球
PP1 聚丙烯 聚丙烯 乙丙橡胶 陶瓷
PP2 聚丙烯 聚丙烯 氟化橡胶 陶瓷

全系列完整型号:

CONC1600PP1000A002   CONC1600PP1000A105  CONC1600PP1000A205  CONC1600PP1000A103  CONC1600PP1000A203

CONC1600PP2000A002   CONC1600PP2000A105  CONC1600PP2000A205  CONC1600PP2000A103  CONC1600PP2000A203

CONC1601PP1000A002   CONC1601PP1000A105  CONC1601PP1000A205  CONC1601PP1000A103  CONC1601PP1000A203

CONC1601PP2000A002   CONC1601PP2000A105  CONC1601PP2000A205  CONC1601PP2000A103  CONC1601PP2000A203

CONC1602PP1000A002   CONC1602PP1000A105  CONC1602PP1000A205  CONC1602PP1000A103  CONC1602PP1000A203

CONC1602PP2000A002   CONC1602PP2000A105  CONC1602PP2000A205  CONC1602PP2000A103  CONC1602PP2000A203

CONC1603PP1000A002   CONC1603PP1000A105  CONC1603PP1000A205  CONC1603PP1000A103  CONC1603PP1000A203

CONC1603PP2000A002   CONC1603PP2000A105  CONC1603PP2000A205  CONC1603PP2000A103  CONC1603PP2000A203

CONC1001PP1000A002   CONC1001PP1000A105  CONC1001PP1000A205  CONC1001PP1000A103  CONC1001PP1000A203

CONC1001PP2000A002   CONC1001PP2000A105  CONC1001PP2000A205  CONC1001PP2000A103  CONC1001PP2000A203

CONC1002PP1000A002   CONC1002PP1000A105  CONC1002PP1000A205  CONC1002PP1000A103  CONC1002PP1000A203

CONC1002PP2000A002   CONC1002PP2000A105  CONC1002PP2000A205  CONC1002PP2000A103  CONC1002PP2000A203

CONC1003PP1000A002   CONC1003PP1000A105  CONC1003PP1000A205  CONC1003PP1000A103  CONC1003PP1000A203

CONC1003PP2000A002   CONC1003PP2000A105  CONC1003PP2000A205  CONC1003PP2000A103  CONC1003PP2000A203

CONC0703PP1000A002   CONC0703PP1000A105  CONC0703PP1000A205  CONC0703PP1000A103  CONC0703PP1000A203

CONC0703PP2000A002   CONC0703PP2000A105  CONC0703PP2000A205  CONC0703PP2000A103  CONC0703PP2000A203

CONC0803PP1000A002   CONC0803PP1000A105  CONC0803PP1000A205  CONC0803PP1000A103  CONC0803PP1000A203

CONC0803PP2000A002   CONC0803PP2000A105  CONC0803PP2000A205  CONC0803PP2000A103  CONC0803PP2000A203

CONC0806PP1000A002   CONC0806PP1000A105  CONC0806PP1000A205  CONC0806PP1000A103  CONC0806PP1000A203

CONC0806PP2000A002   CONC0806PP2000A105  CONC0806PP2000A205  CONC0806PP2000A103  CONC0806PP2000A203

CONC0306PP1000A002   CONC0306PP1000A105  CONC0306PP1000A205  CONC0306PP1000A103  CONC0306PP1000A203

CONC0306PP2000A002   CONC0306PP2000A105  CONC0306PP2000A205  CONC0306PP2000A103  CONC0306PP2000A203

CONC0308PP1000A002   CONC0308PP1000A105  CONC0308PP1000A205  CONC0308PP1000A103  CONC0308PP1000A203

CONC0308PP2000A002   CONC0308PP2000A105  CONC0308PP2000A205  CONC0308PP2000A103  CONC0308PP2000A203

CONC0313PP1000A002   CONC0313PP1000A105  CONC0313PP1000A205  CONC0313PP1000A103  CONC0313PP1000A203

CONC0313PP2000A002   CONC0313PP2000A105  CONC0313PP2000A205  CONC0313PP2000A103  CONC0313PP2000A203

CONC0212PP1000A002   CONC0212PP1000A105  CONC0212PP1000A205  CONC0212PP1000A103  CONC0212PP1000A203

CONC0212PP2000A002   CONC0212PP2000A105  CONC0212PP2000A205  CONC0212PP2000A103  CONC0212PP2000A203

CONC0215PP1000A002   CONC0215PP1000A105  CONC0215PP1000A205  CONC0215PP1000A103  CONC0215PP1000A203

CONC0215PP2000A002   CONC0215PP2000A105  CONC0215PP2000A205  CONC0215PP2000A103  CONC0215PP2000A203

CONC0223PP1000A002   CONC0223PP1000A105  CONC0223PP1000A205  CONC0223PP1000A103  CONC0223PP1000A203

CONC0223PP2000A002   CONC0223PP2000A105  CONC0223PP2000A205  CONC0223PP2000A103  CONC0223PP2000A203
